E-Catalog > 7 Mercotac Rotary Electrical Connector > Three conductor Model 335

PAGE VIEW : 13,015

Product Information :

Name :

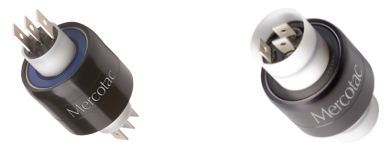

Three conductor Model 335
Category :
  1. เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล
Sub - Category :
  1. 7 Mercotac Rotary Electrical Connector
Brand :
Mercotac
Model :
335
Product Type :
  1. สินค้า, ผลิตภัณฑ์

Product Detail :

Model 335
Three Conductors,
3@30amps & 500V




Disconnects included (6 lg.)
Boot Kit available
Available with stainless steel
ball bearing (335-SS)

Model No. Terminals Voltage
AC/DC
Amp
Rating
@500VAC
Max.
Freq.
MHz
Contact
Resistance
Max.
RPM
Temp
Max. F (C) /
Min. F (C)
Rotation
Torque (gm-cm)
Circuit
Separation
335 3 0-500 30 100

<1m

500 140 (60) /-20(-29) 700

>50M

335-SS 3 0-500 30 100

<1m

500 140 (60) /-20(-29) 700

>50M

"SS" designator indicates stainless steel ball bearing (recommended for wet or corrosive environments)

Model 335 Accessories
57335
Boot Kit for dust or splash
protection IP51
55250
Terminal 16 - 14 AWG
(qty. 3 included)
55251
Terminal 16 - 14 AWG
(qty. 3 included)
  Terminals for other wire gauges available.
(22-18 AWG and 12-10 AWG)

Model 335 Standard Wire Connections

Model 335 Wire Connections With Optional Boot
Model 335 Suggested Mounting Methods
Model 335 is typically mounted by either the black body or the white plastic bushing on either end using a set screw. When mounting horizontally, mount the Mercotac so the body of the connector rotates.

Typical Body Mount Hole Dimensions

MODEL HOLE DIAMETER (Ø) * DEPTH
335, et al 1.575" (40.0) .80" (20.3)


Typical Bushing Mount Hole Dimensions

335, et al .984" (25.0) .80" (20.3)
*Inch (mm) Tolerance Ø +.001" (+.025)
  -.000" (-.000)











Installation Notes:
  • the up arrow should not point below horizontal
  • do not solder to or bend connector tabs
  • avoid lateral forces and mechanical loads (overly stiff or tight wires)
  • do not rigid mount both ends of connector
  • limit mounting eccentricity (runout / wobble) to .005" (.13mm)
  • provide overload protection within the circuit
  • avoid vibration and bumping motions
