Product Information :

Name :

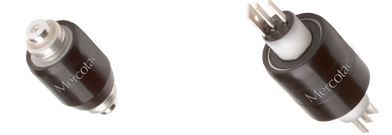

Three conductor Model 305
Category :
  1. เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล
Sub - Category :
  1. 7 Mercotac Rotary Electrical Connector
Brand :
Mercotac
Model :
305
Product Type :
  1. สินค้า, ผลิตภัณฑ์

Product Detail :



Model 305
Three Conductors,
4 Amps




Stainless steel ball bearing standard

Model No. Terminals Voltage
AC/DC
Amp
Rating
@240VAC
Max.
Freq.
MHz
Contact
Resistance
Max.
RPM
Temp
Max. F (C) /
Min. F (C)
Rotation
Torque (gm-cm)
Circuit
Separation
305 3 0-250 4 200

<1m

1800 140 (60) /45(7) 100

>25M

305-L 3 0-250 4 200

<1m

1000 140 (60) /-20(-29) 100

>25M

"L" designator indicates low temp.

Model 305 Accessories
593
three contact receptacle w/ 6" wires (18 AWG)
553
three contact cap
w/solder lugs

Receptacle used for mounting to rotating device.
Accessories required for wire connections. Order Separately.


Model 305 Connections

Note: The outer shell of the metal receptacle used for mounting is electrically conductive.
Model 305 Suggested Mounting Methods
Model 305 is typically mounted by the knurled metal receptacle, which is press-fit into the rotating member of the machine. When mounting horizontally, mount the Mercotac so the body of the connector rotates.

Receptacle Mount Hole Dimensions

MODEL HOLE DIAMETER (Ø) * DEPTH
593 .408" (10.36) .35" (8.89)
*Inch (mm) Tolerance Ø +.001" (+.025)
  -.000" (-.000)









Installation Notes:
  • the up arrow should not point below horizontal
  • do not solder to or bend connector tabs
  • avoid lateral forces and mechanical loads (overly stiff or tight wires)
  • do not rigid mount both ends of connector
  • limit mounting eccentricity (runout / wobble) to .005" (.13mm)
  • provide overload protection within the circuit
  • avoid vibration and bumping motions
