Product Information :

Name :

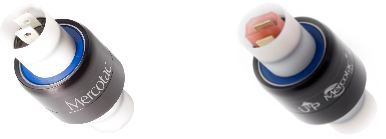

Two conductor Model 215-2K
Category :
  1. เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล
Sub - Category :
  1. 7 Mercotac Rotary Electrical Connector
Model :
215-2K
Product Type :
  1. สินค้า, ผลิตภัณฑ์

Product Detail :



Model
215-2K

Two Conductors,
2@15amps & 2,000V




Disconnects included (4 lg.)
Boot Kit available
Available with stainless steel
ball bearing (215-2KSS)

Model No. Terminals Voltage
AC/DC
Amp
Rating
@2000VAC
Max.
Freq.
MHz
Contact
Resistance
Max.
RPM
Temp
Max. F (C) /
Min. F (C)
Rotation
Torque (gm-cm)
Circuit
Separation
215-2K 2 0-2,000 15 100

<1m

1200 140 (60) /-20(-29) 400

>50M

215-2KSS 2 0-2,000 15 100

<1m

1200 140 (60) /-20(-29) 400

>50M

"SS" designator indicates stainless steel ball bearing (recommended for wet or corrosive environments)

Model 215-2K Accessories
57235
Boot Kit for dust or splash
protection IP51
552KA
Terminal 22 - 18 AWG
(qty. 4 included)
55253
Shrink Tube
(qty. 4 included)
  Terminals for 16-14 AWG wires available (p/n 552KB).

Model 215-2K Standard Wire Connections

Model 215-2K Wire Connections With Optional Boot
Model 215-2K Suggested Mounting Methods
Model 215-2K is typically mounted by either the black body or the white plastic bushing on either end using a set screw. When mounting horizontally, mount the Mercotac so the body of the connector rotates.

Typical Body Mount Hole Dimensions

MODEL HOLE DIAMETER (Ø) * DEPTH
215-2K, et al 1.248" (31.7) .80" (20.3)


Typical Bushing Mount Hole Dimensions

215-2K, et al .748" (19.0) .80" (20.3)
*Inch (mm) Tolerance Ø +.001" (+.025)
  -.000" (-.000)











Installation Notes:
  • the up arrow should not point below horizontal
  • do not solder to or bend connector tabs
  • avoid lateral forces and mechanical loads (overly stiff or tight wires)
  • do not rigid mount both ends of connector
  • limit mounting eccentricity (runout / wobble) to .005" (.13mm)
  • provide overload protection within the circuit
  • avoid vibration and bumping motions
