Product Information :

Name :
Two conductor model 235
Category :
  1. เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล
Sub - Category :
  1. 7 Mercotac Rotary Electrical Connector
Brand :
Mercotac
Model :
235
Product Type :
  1. สินค้า, ผลิตภัณฑ์

Product Detail :

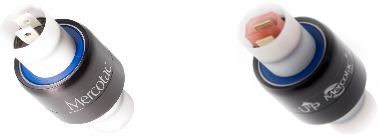

Model 235
Two Conductors,
2@30amps & 500V




Disconnects included (4 lg.)
Boot Kit available
Available with stainless steel
ball bearing (235-SS)

Model No. Terminals Voltage
AC/DC
Amp
Rating
@500VAC
Max.
Freq.
MHz
Contact
Resistance
Max.
RPM
Temp
Max. F (C) /
Min. F (C)
Rotation
Torque (gm-cm)
Circuit
Separation
235 2 0-500 30 100

<1m

1200 140 (60) /-20(-29) 400

>50M

235-SS 2 0-500 30 100

<1m

1200 140 (60) /-20(-29) 400

>50M

"SS" designator indicates stainless steel ball bearing (recommended for wet or corrosive environments)

Model 235 Accessories
57235
Boot Kit for dust or splash
protection IP51
55250
Terminal 16 - 14 AWG
(qty. 2 included)
55251
Terminal 16 - 14 AWG
(qty. 2 included)
  Terminals for other wire gauges available.
(22-18 AWG and 12-10 AWG)

Model 235 Standard Wire Connections

Model 235 Wire Connections With Optional Boot
Model 235 Suggested Mounting Methods
Model 235 is typically mounted by either the black body or the white plastic bushing on either end using a set screw. When mounting horizontally, mount the Mercotac so the body of the connector rotates.

Typical Body Mount Hole Dimensions

MODEL HOLE DIAMETER (Ø) * DEPTH
235, et al 1.248" (31.7) .80" (20.3)


Typical Bushing Mount Hole Dimensions

235, et al .748" (19.0) .80" (20.3)
*Inch (mm) Tolerance Ø +.001" (+.025)
  -.000" (-.000)











Installation Notes:
  • the up arrow should not point below horizontal
  • do not solder to or bend connector tabs
  • avoid lateral forces and mechanical loads (overly stiff or tight wires)
  • do not rigid mount both ends of connector
  • limit mounting eccentricity (runout / wobble) to .005" (.13mm)
  • provide overload protection within the circuit
  • avoid vibration and bumping motions
