Product Information :

Name :
Tension Detector (Load Cell)
Category :
  1. เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล
Sub - Category :
  1. 5 PORA Web & Tension Control System
Brand :
PORA
Model :
PRTL-A, PRTL-AB, PR-LX-TD, PRTL-PA, PRTP-T, PRTL-FC Series
Product Type :
  1. เครื่องมือ, เครื่องจักรและอุปกรณ์
  2. สินค้า, ผลิตภัณฑ์
Short Description :
Load Cell ชั้นเลิศจากเกาหลี มีดีไซน์ที่เรียบหรู มาคู่ขนาดกะทัดรัด วัดน้ำหนักเที่ยงตรงดุจตราชั่ง อีกทั้งส่งค่าไปประมวลอย่างแม่นยำ นำไปควบคุมความตึงของชิ้นงานได้ดีเยี่ยม ใช้ในอุตสาหกรรมที่มีการปล่อย หรือ เก็บม้วนวัสดุ เช่น กระดาษ ฟิล์ม ผ้า อีกหนึ่งผลิตภัณฑ์คุณภาพจาก NITCO

Product Detail :







PORA Tension Detector (Load Cell) โหลดเซลชั้นเลิศ จากเกาหลี มีดีไซน์ที่เรียบหรู มาคู่ขนาดกะทัดรัด วัดน้ำหนักเที่ยงตรงดุจตราชั่ง คือ อุปกรณ์ หรือ เซ็นเซอร์ประเภทหนึ่ง ที่สร้างจากหลักการของ strain gauge และ เครื่องชั่งน้ำหนัก มีการนำมาประยุกต์ใช้อย่างกว้างขวางทางด้านระบบควบคุมอัตโนมัติในงานอุตสาหกรรม ในการวัดค่าแรงกดอันเนื่องมาจากค่าความตึง (tension) ของชิ้นงาน ที่กระทำต่อตัวโหลดเซล

ค่าแรงหรือน้ำหนักที่วัดได้จากโหลดเซลที่ติดตั้งอยู่ทั้ง 2 ข้างของ ลูกกลิ้ง (Roller) เพลา (Shaft) หรือ Air shaft จะถูกแปรเปลี่ยนเป็นสัญญาณไฟฟ้า ส่งตรงเข้าไปประมวลผลที่คอนโทรลเลอร์ (Automatic tension controller) เพื่อควบคุม Powder Clutch หรือ Powder Brake ให้ทำการปรับค่าความตึงของชิ้นงานให้เป็นไปตามความต้องการได้อย่างถูกต้องแม่นยำ เหมาะสำหรับอุตสาหกรรมที่มีการปล่อย หรือ เก็บผืนแผ่นวัสดุเข้าออกจากม้วน อาทิ เช่น กระดาษ ฟิล์ม ผ้า และ อุตสาหกรรมที่เกี่ยวข้องกับแผ่นชิ้นงานทุกชนิด



คุณลักษณะของ Tension Detector

1. สามารถวัดค่าน้ำหนัก เพื่อนำไปใช้ควบคุมความตึงของชิ้นงานในกระบวนการผลิตได้อย่างแม่นยำ



2. Tension Detector นี้ จะทำงานโดยการ ส่งค่าแรงกดหรือน้ำหนักที่วัดมาได้ ไปประมวลผลที่ automatic tension controller เพื่อให้คอนโทรลเลอร์ส่งสัญญาณไปควบคุม powder clutch หรือ powder brake เพื่อปรับความตึงของชิ้นงานให้เป็นไปตามที่ต้องการ

3. มีโครงสร้างที่เรียบง่าย ผู้ใช้งานสามารถติดตั้งได้สะดวก บำรุงรักษาได้สบาย



4. มีเสถียรภาพสูง ทำงานในระบบได้อย่างราบรื่น อายุการใช้งานยาวนาน



อีกหนึ่งผลิตภัณฑ์คุณภาพจาก NITCO

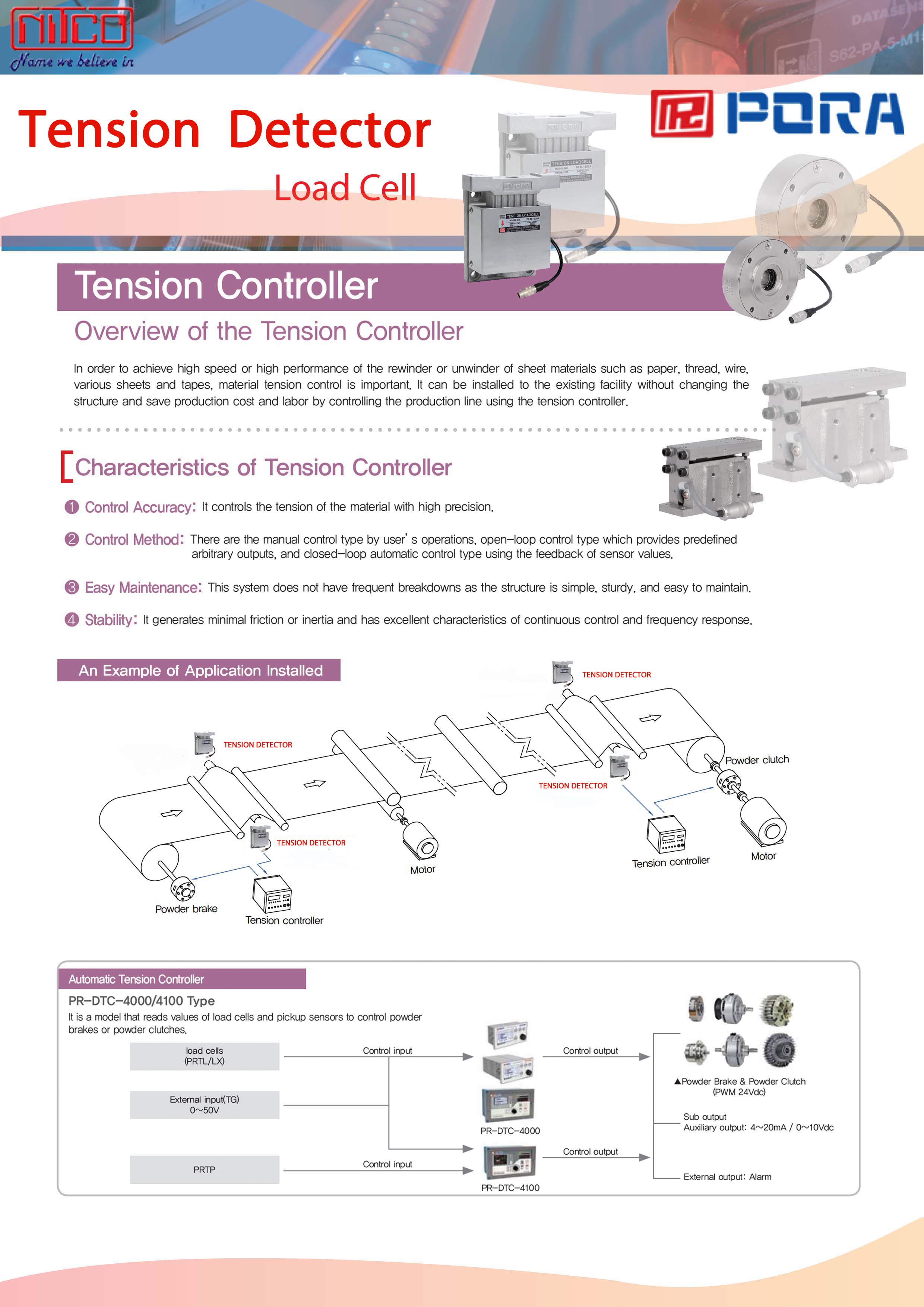

PORA Tension Detector (Load Cell)  with premium quality from Korea, high class & compact design and excellent accuracy is a device, sensor or transducer utilizing strain gauge and weight measuring equipment to measure weight applied to an idler roller due to tension in material.

Load Cell installed at both sides of roller, shaft or air shaft will create and send an electrical signal whose magnitude is directly proportional to the force being measured to an automatic tension controller. Signal will be sent from controller to control powder clutch or powder brake in order to adjust material tension to be suitable for customer work. This Load Cell is widely used in production line which consists of rewinder or unwinder of sheet materials such as paper, thread, wire, film, tape and etc.



Characteristics of Tension Detector

1. Control Accuracy: It controls the tension of the material with high precision.

2. Control Method: Closed-loop automatic control type using the feedback of sensor values.

3. Easy maintenance: This system does not have frequent breakdowns as the structure is simple and easy to maintain.

4. Stability: It generates minimal friction or inertia and has excellent characteristics of continuous control and frequent response.



Carefully select for you by NITCO
