E-Catalog > PORA Hydraulic Unit > 2HP (Premium type) Hydraulic Unit

PAGE VIEW : 14,623

Product Information :

Name :
2HP (Premium type) Hydraulic Unit
Category :
  1. เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล
Sub - Category :
  1. PORA Hydraulic Unit
Brand :
Pora
Model :
Model PR-SV-S201FH
Product Type :
  1. สินค้า, ผลิตภัณฑ์

Product Detail :



2HP (Premium type)




(Exclusively for iron plates and copper plates) This is a servo hydraulic unit for the PR-SV series which ensure excellent performance by adopting a servo valve of high accuracy.



SPECIFICATIONS
Model PR-SV-S201FH

Motor 2HP (1.5kW)

Maximum pressure 5Mpa (50Kg/㎠)

Valve flow rate 12ℓ/min

Oil capacity 80ℓ

Operating
temperature		 -5℃ ~ +50℃

Oil specification ISO-VG46 (GS-RANDO #46)

Voltage AC 380 ~ 440V-50/60Hz

Weight 80Kg


Related Product :

Tension Detector (LX Type)
1. Tension Detector (LX Type) (ID : 67589)
Brand : Pora
Model : Model PRTL-LX type
Last Update : 04/04/2557 09:45 Preview : 16,191
Double Type Guide Roller (Center Pivot Type,250~450mm)
2. Double Type Guide Roller (Center Pivot Type,250~450mm) (ID : 67595)
Brand : Pora
Model : Model PR-MCD Type
Last Update : 14/08/2555 15:20 Preview : 13,309
D4 Differential Air Shaft
3. D4 Differential Air Shaft (ID : 68634)
Brand : Tidland
Model : D4 Differential Air Shaft
Last Update : 03/03/2557 08:18 Preview : 13,944
Reel Spools
4. Reel Spools (ID : 68636)
Brand : Tidland
Model : Reel Spools
Last Update : 02/07/2555 17:59 Preview : 13,023
G690 Leaf Shaft
5. G690 Leaf Shaft (ID : 68642)
Brand : Tidland
Model : G690 Leaf Shaft
Last Update : 02/07/2555 18:16 Preview : 12,848
External Element Shaft and Core Holder
6. External Element Shaft and Core Holder (ID : 68644)
Brand : Tidland
Model : External Element Shaft and Core Holder
Last Update : 14/11/2558 13:47 Preview : 13,465
Automatic Lug Chuck
7. Automatic Lug Chuck (ID : 68648)
Brand : Tidland
Model : Automatic Lug Chuck
Last Update : 13/02/2560 15:31 Preview : 13,724
Boschert Safety Chucks
8. Boschert Safety Chucks (ID : 68650)
Brand : Tidland
Model : C, VT Series
Last Update : 08/11/2559 14:49 Preview : 14,391

Other Product In Group "PORA Hydraulic Unit (5)"

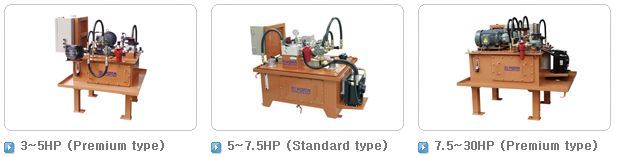

1~2HP Hydraulic unit
