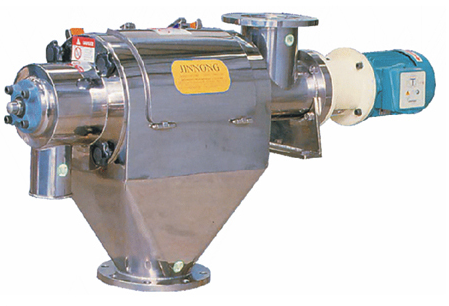

CENTRIFUGAL SIFTER OPERATING PRINCIPLES

The original material feeding from the inlet by the natural strength or the principle of quota transportation. Then the spiral pushes the original material to enter the cylinder sieve. The leaf blades in the sieve actuate by way of the motor, the operating leaf blades have the centrifugal force. After the centrifugal force the original material in cylinder sieve through the mesh fastly. By the way of sieving, oversized pellet can discharge from the outlet. (The revolution leaf blades cannot touch the sieve. The sifter can break the grain, also has suppression to tie group, and avoids repeating to make grain.)

CENTRIFUGAL SIFTER FEATURES

＊Compact design.
＊Simple screen change-out.
＊Low operating cost.
＊Excellent product classification.
＊No vibration, low noise.
＊High Product with minimum maintenance.
＊High capacity.
＊High efficiency sifter.
＊Easy to operate, easy to clean.
＊Continuous discharge of oversize.

CENTRIFUGAL SIFTER STRUCTURE

No Part Name No Part Name A Motor G Blade B Screw H Brush C Feed Inlet I Sifter D Sifter Holder J Product Outlet E Spindle K Check Plate F Stirrer L Oversize Discharge Outlet

Sieve Assembles Steps

Disassembles Steps

CENTRIFUGAL SIFTER SPECIFICATION   Model KW Volt RPM A B C D E F G H H' L M N P W The area of screen mesh 50HZ 60HZ S190 0.75 220V 380V 440V 110 ~ 660 133 ~ 800 5" φ140 φ235 φ165 φ265 6" φ89 605 1075 1390 420 128 65 304 0.21m² S320 2.25 6" φ167 φ265 φ218 φ320 8" φ140 828 1478 1846 620 175 80 464 0.54 m²

CENTRIFUGAL SIFTER APPLICATION

＊Feedstock policing.
＊Scalping.
＊Classification
＊Conditioning
＊De-dusting

Centrifugal Sifters Applications：
Flour, sugar, spices, chemicals, blended ingredients, clay, gypsum ascorbic acid, baby foods, baking soda, bone meal, bran, borax, cake mix, calcium carbonate, carbon black, casein, cheese powder, chalk, coal powder, cocoa powder, coke powder, corn meal, dehydrated vegetables, detergent, dextrose, diatomaceous earth, donut mix, eggs powdered, epoxy resin, epoxy powder coatings, fertilizer, chemical, fibers, fire extinguisher powder, fish meat, various fungicide, herbicide, hulls, ground iron oxide, lead oxide, limestone, meal soybean, metallic powders, ,milk powder, resin, pigments, various protein, salt silica, soap, sodium bicarbonate, starch, talcum, titanium dioxide, tobacco, ground urea, vitamins, powdered.
